Video and display system to replace rear view mirrors on cars

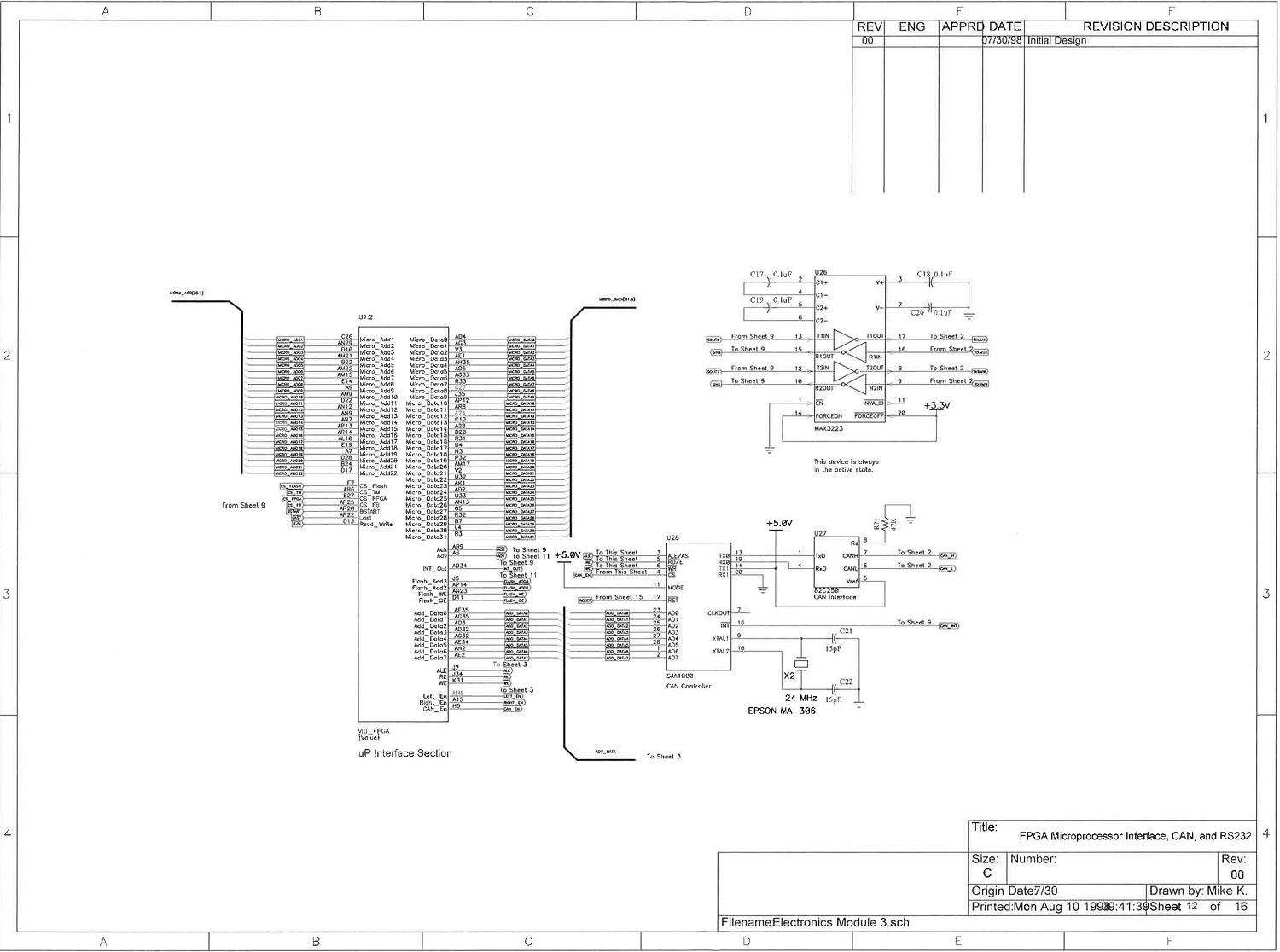

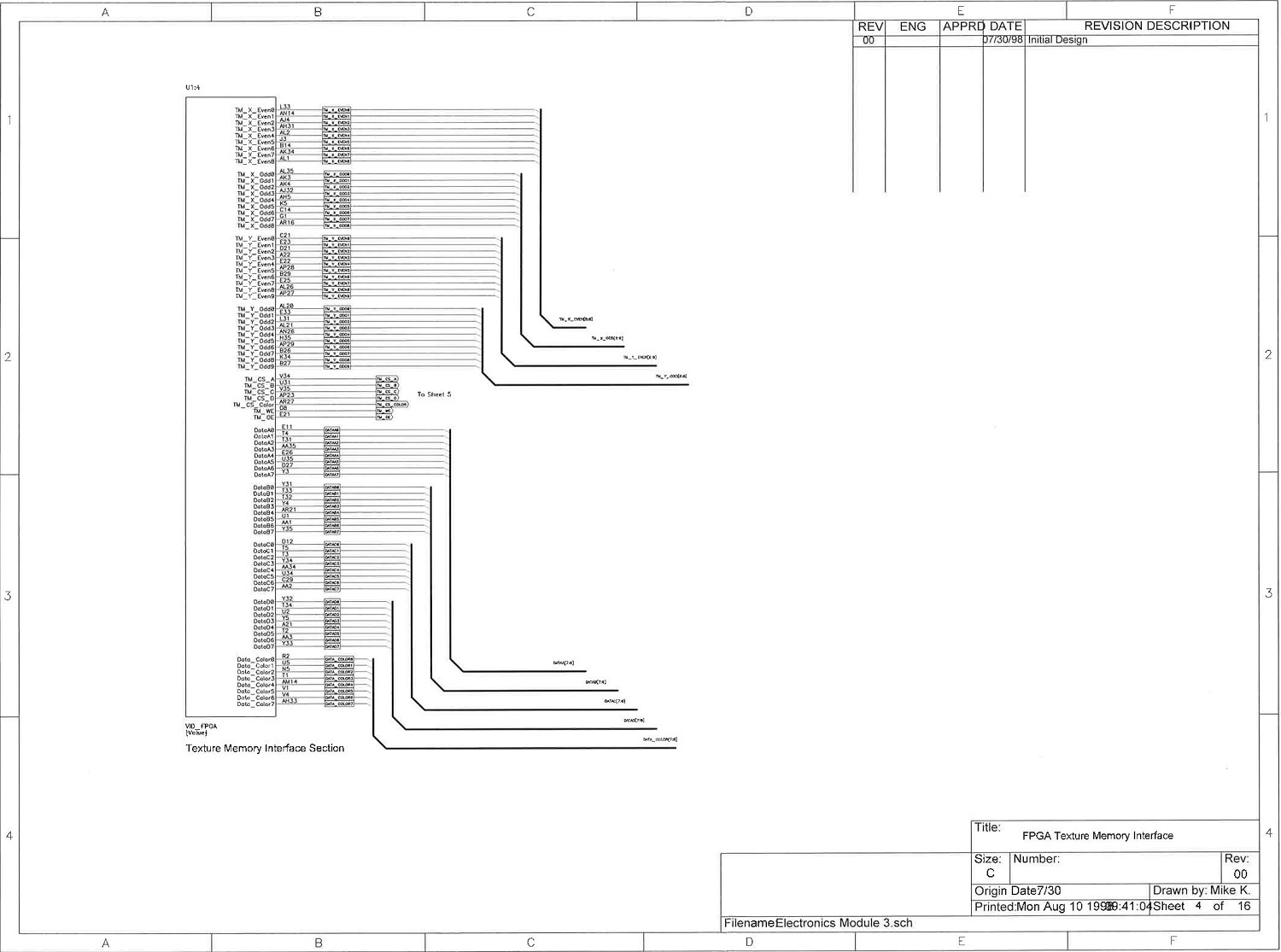

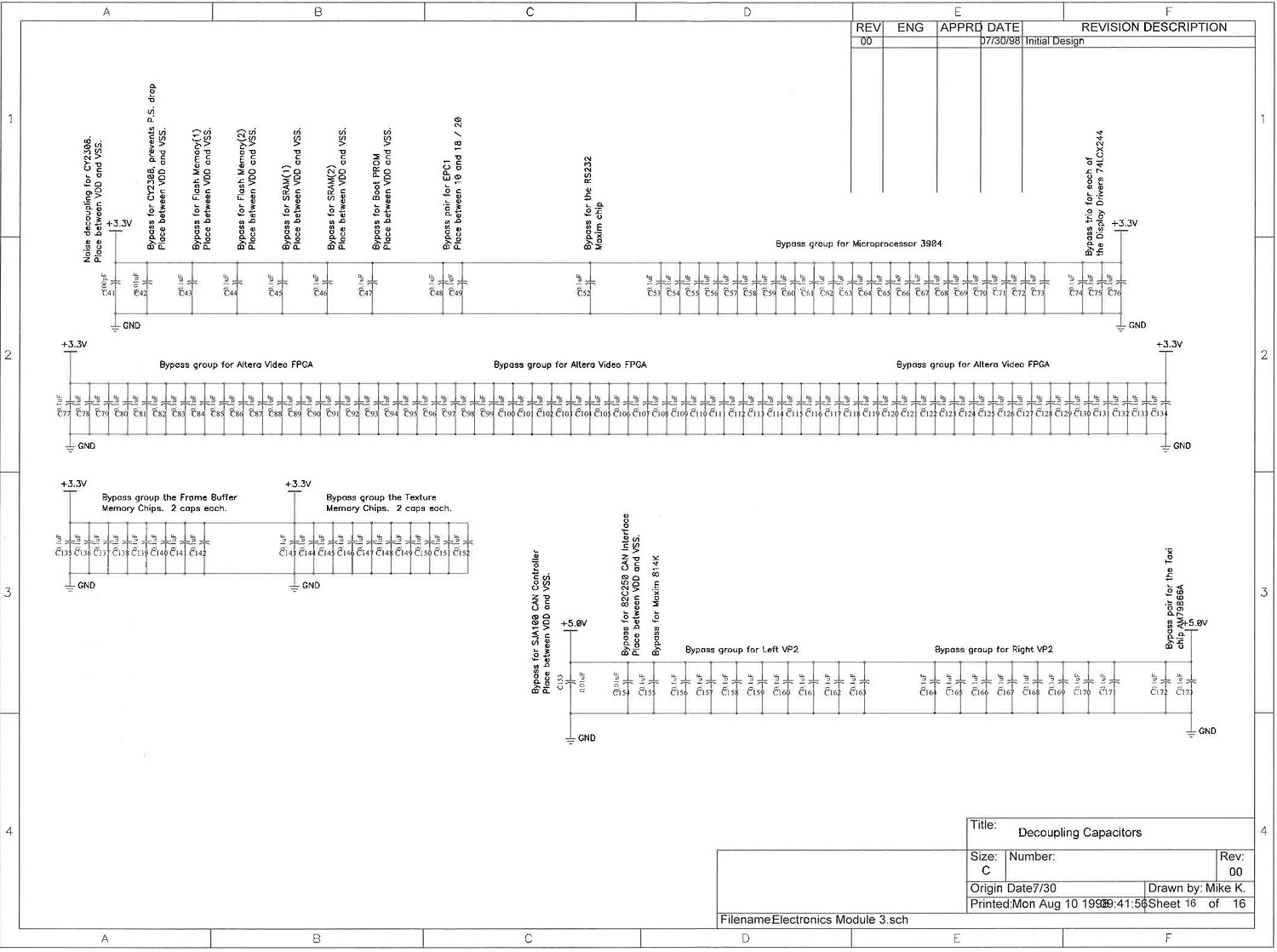

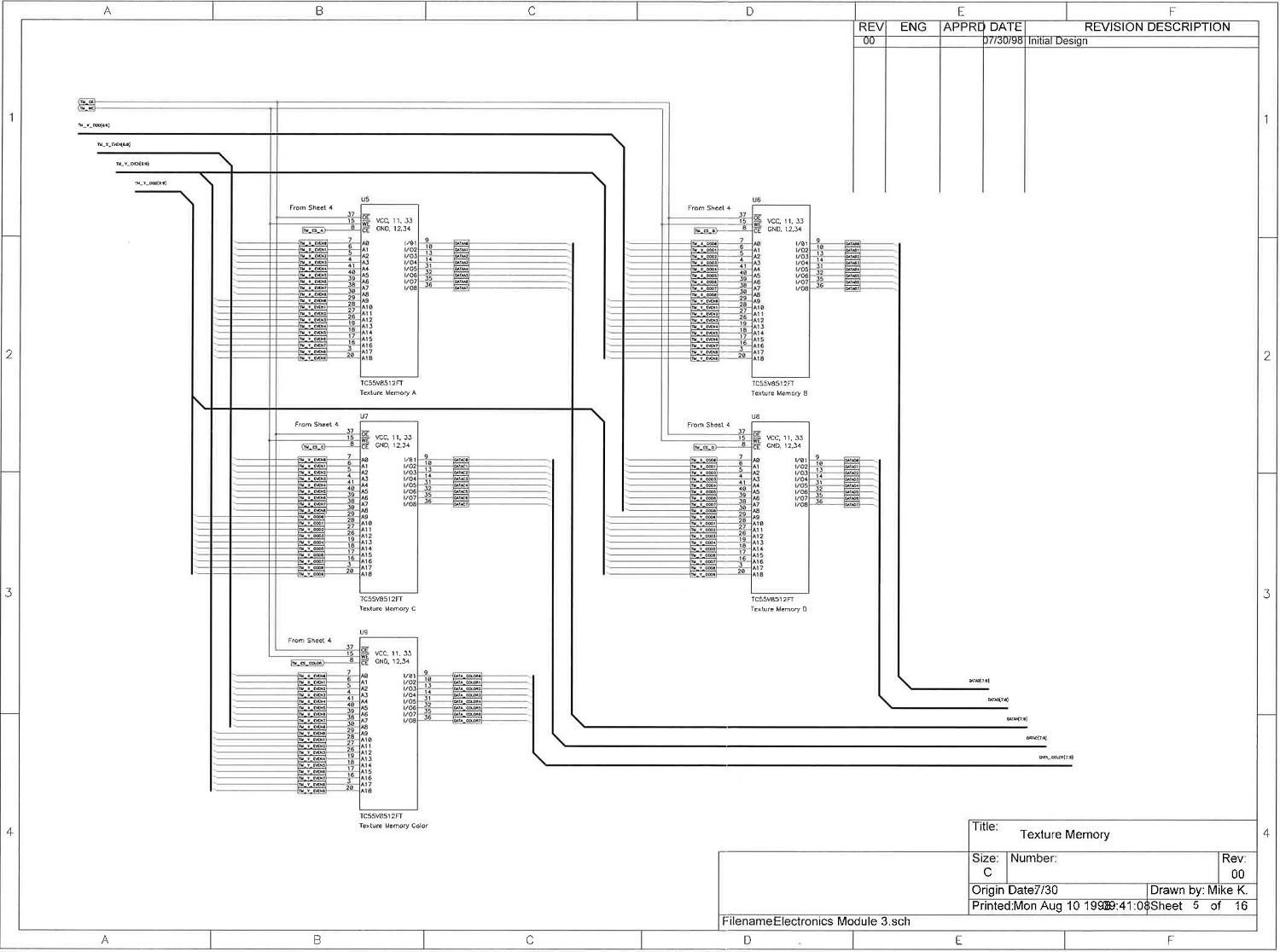

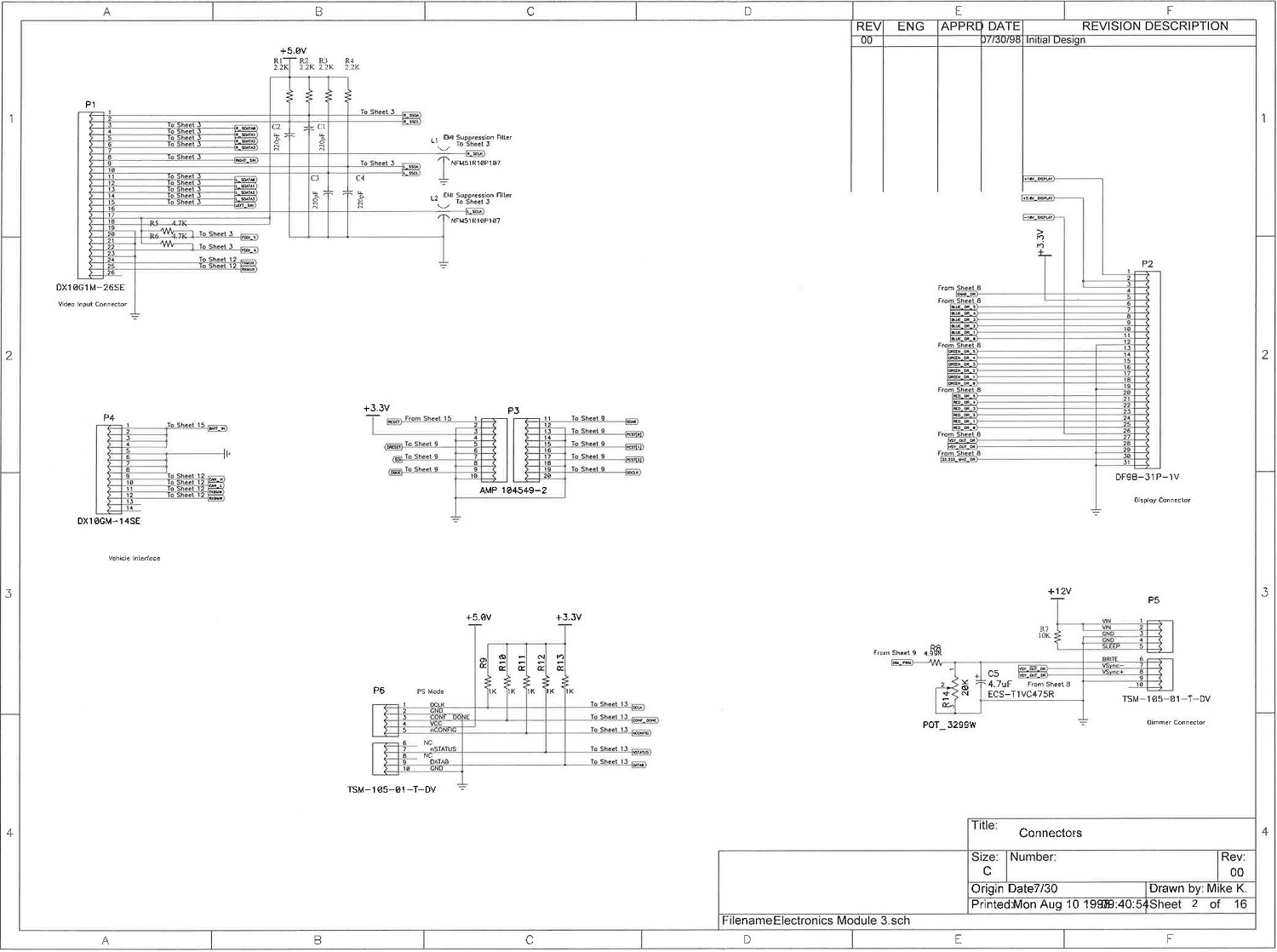

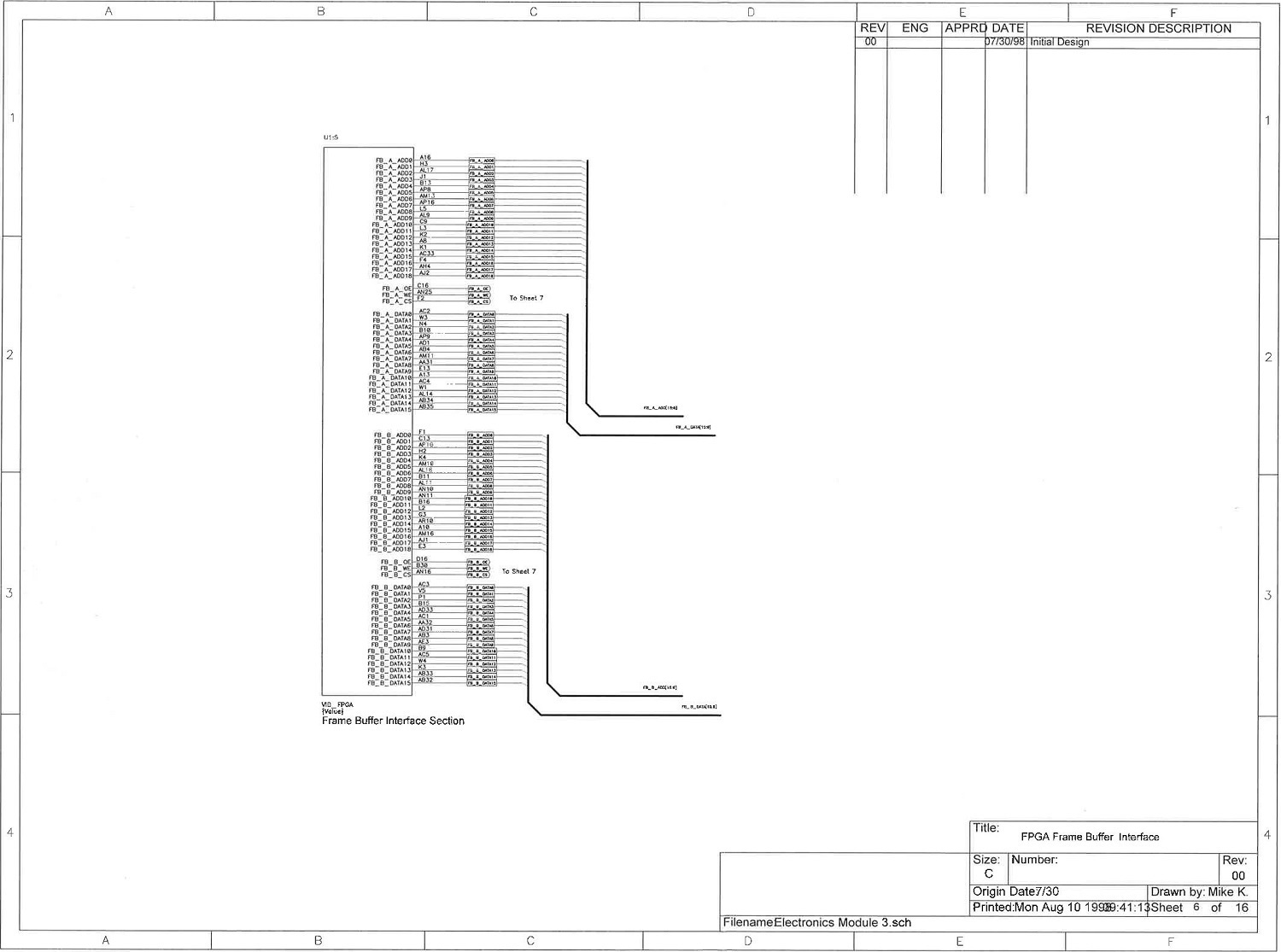

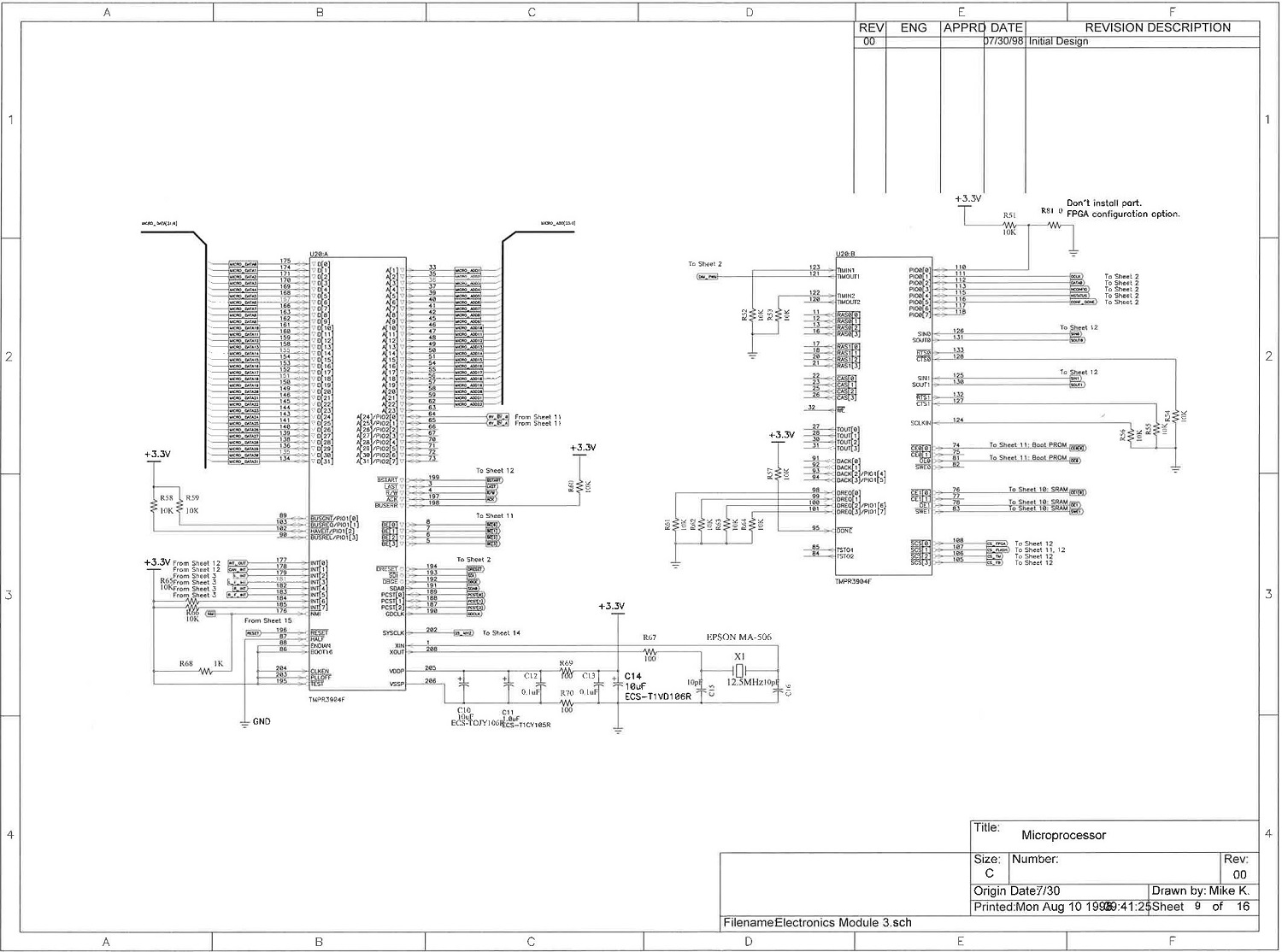

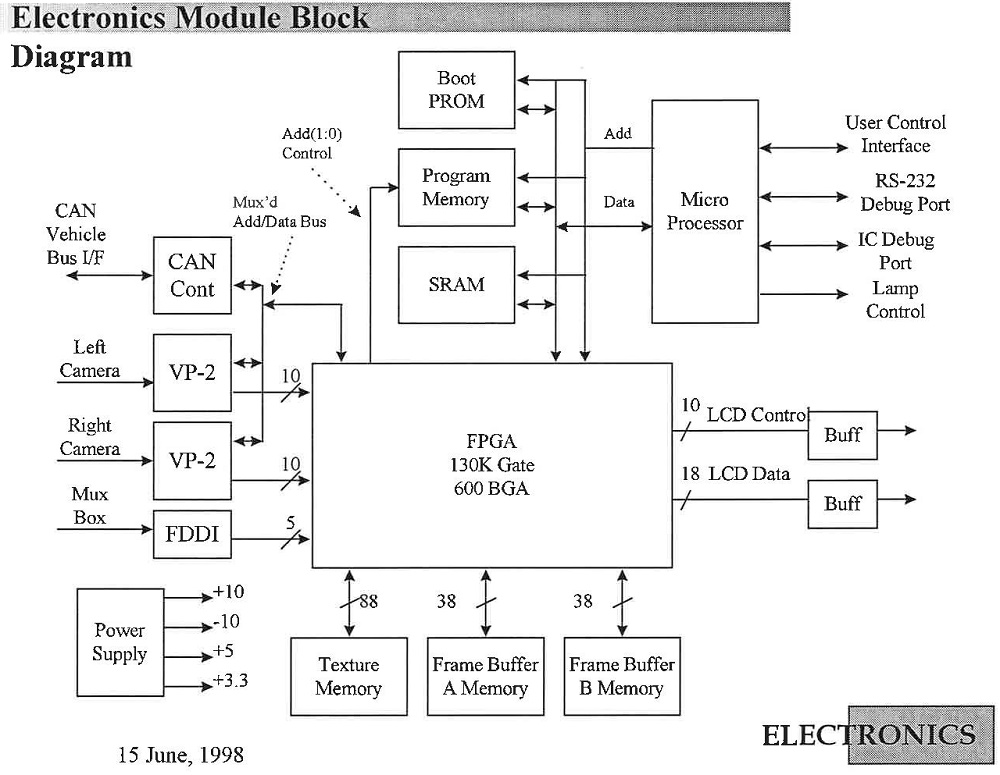

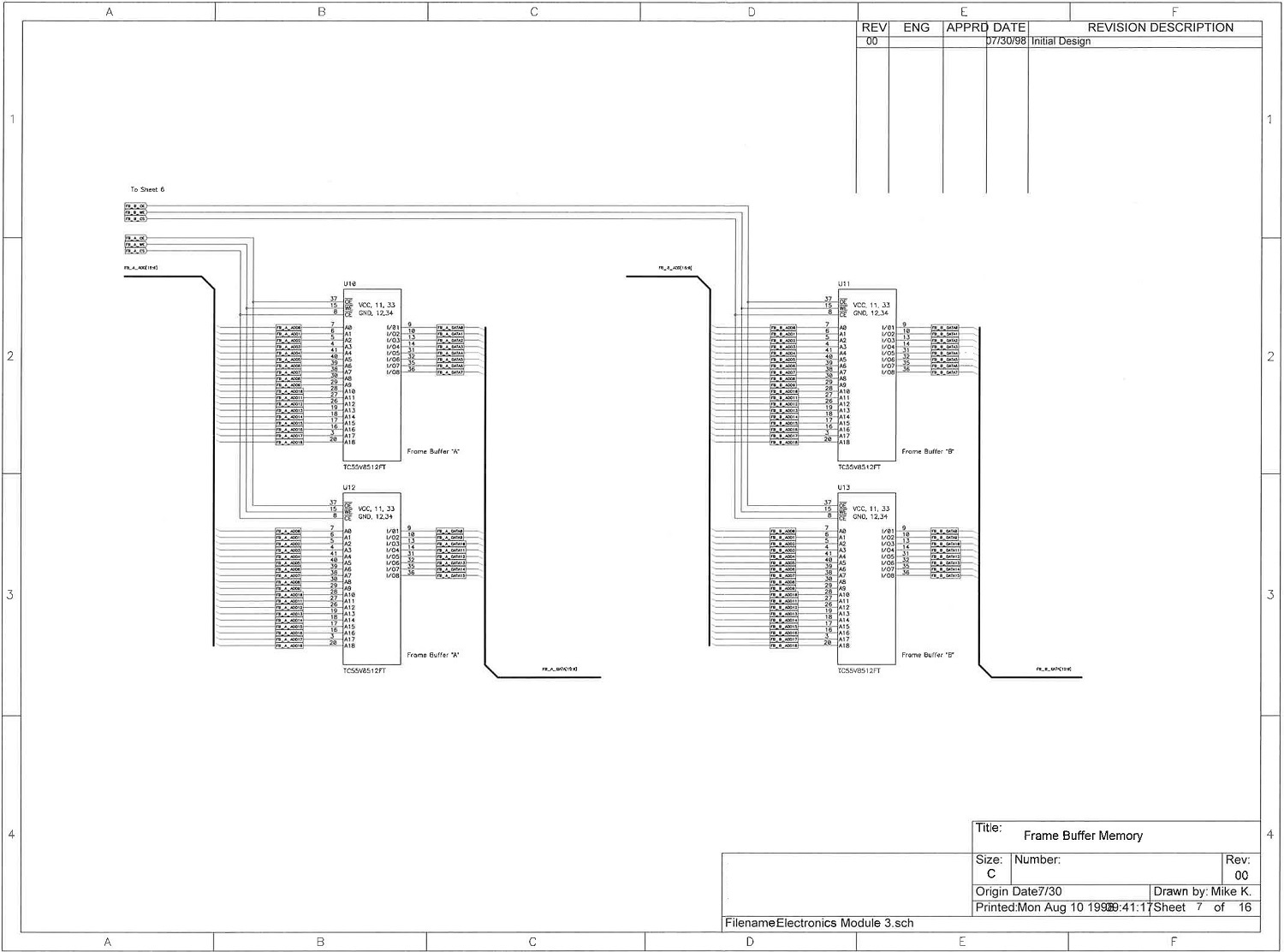

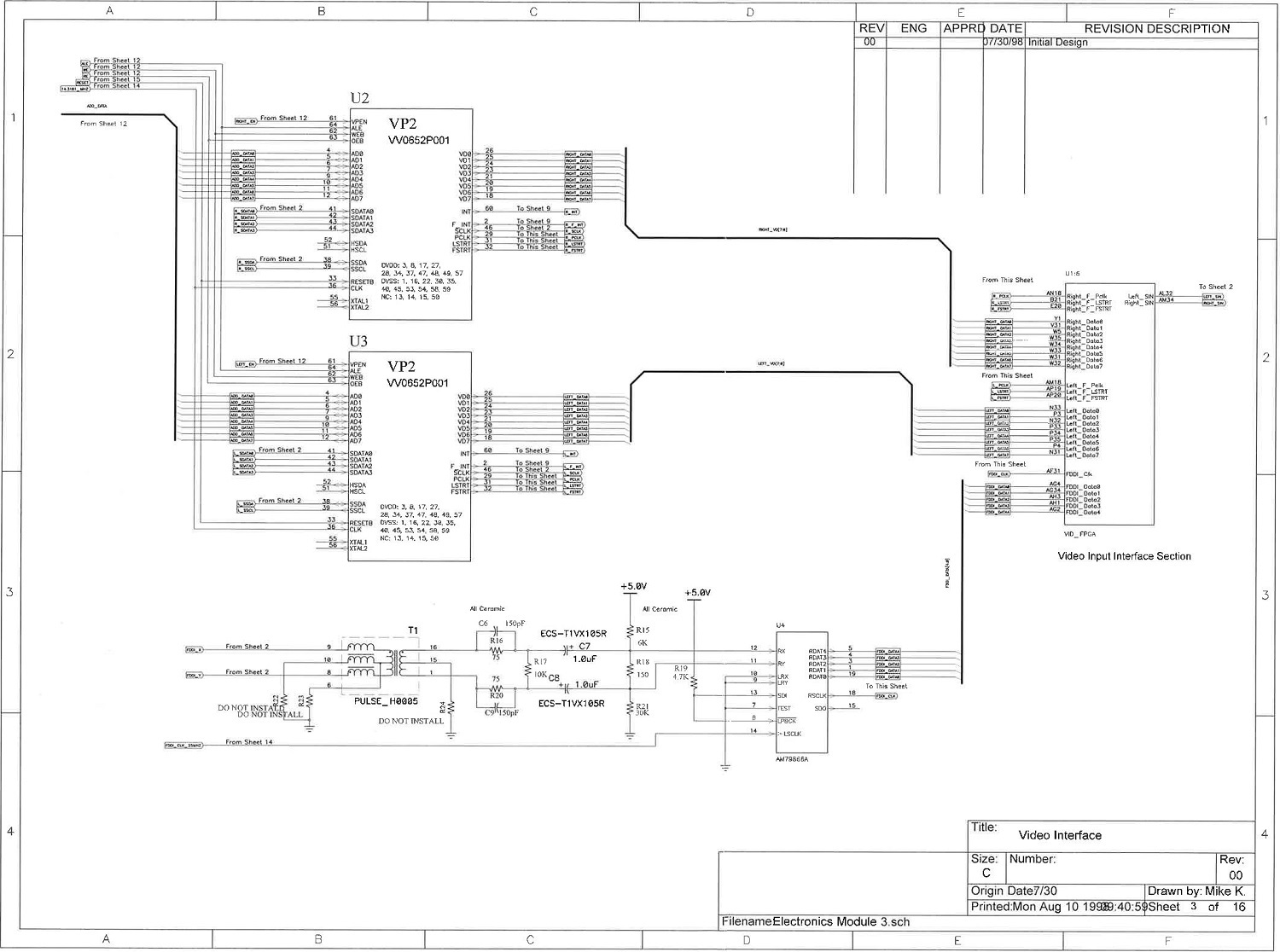

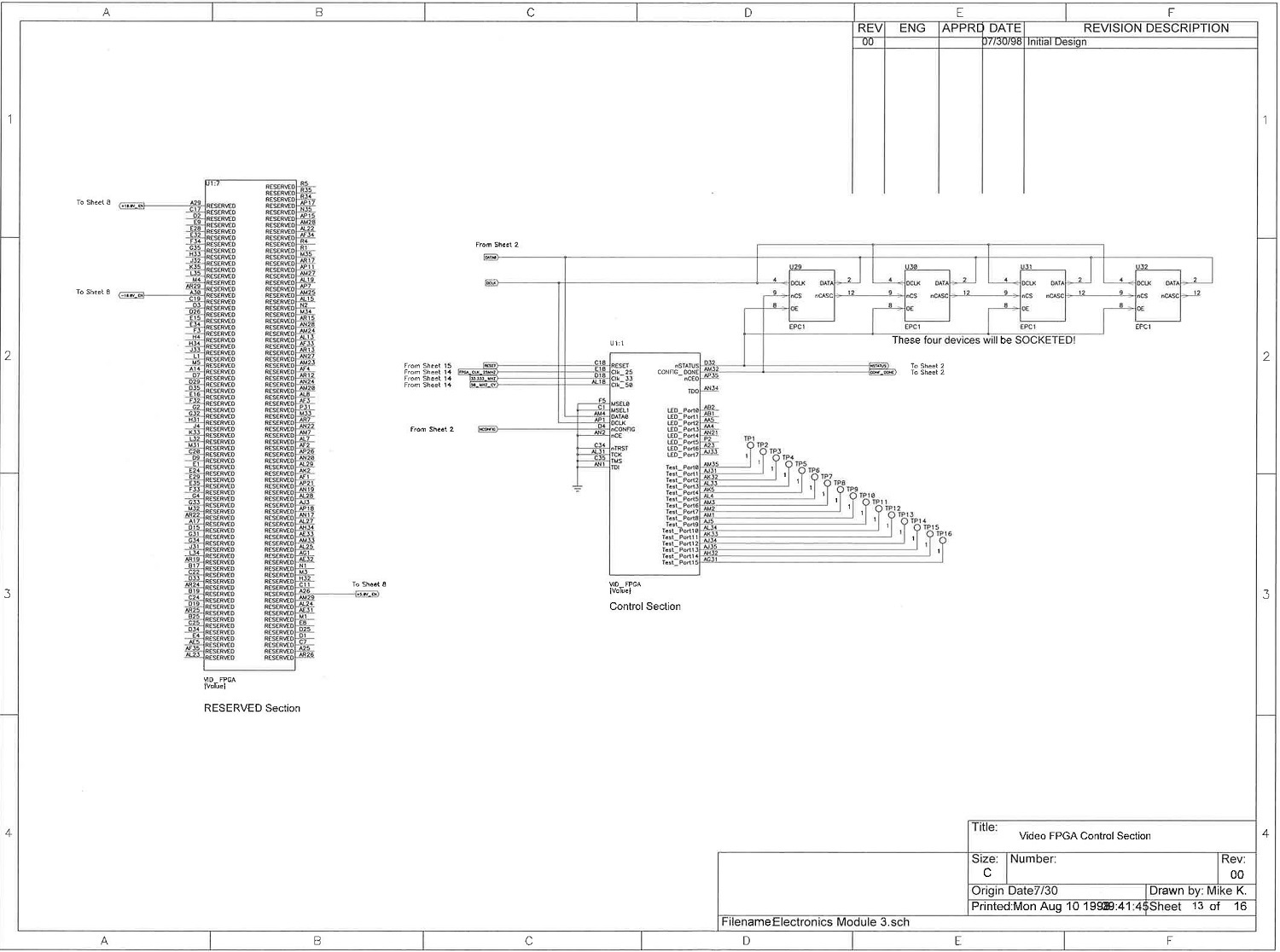

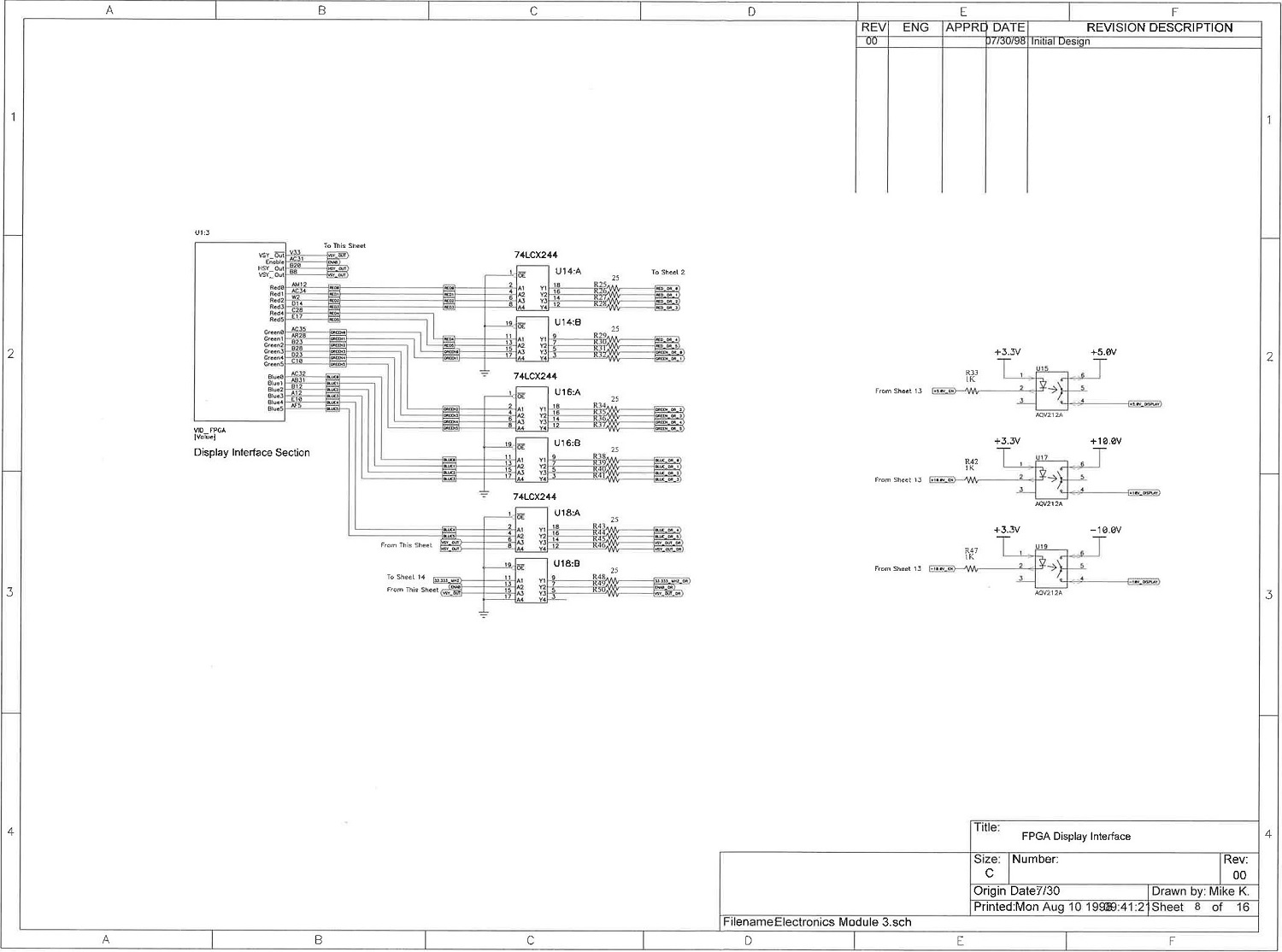

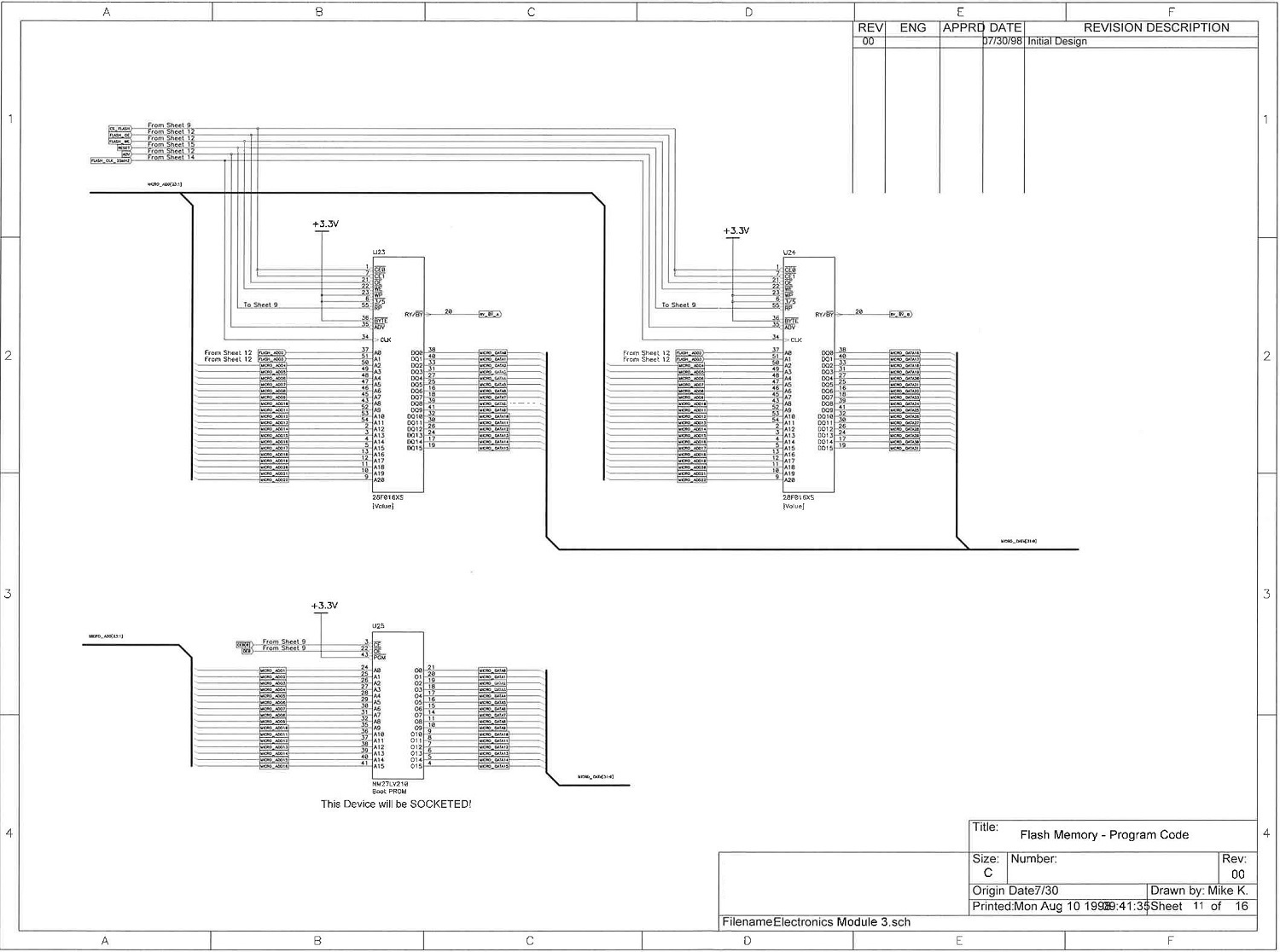

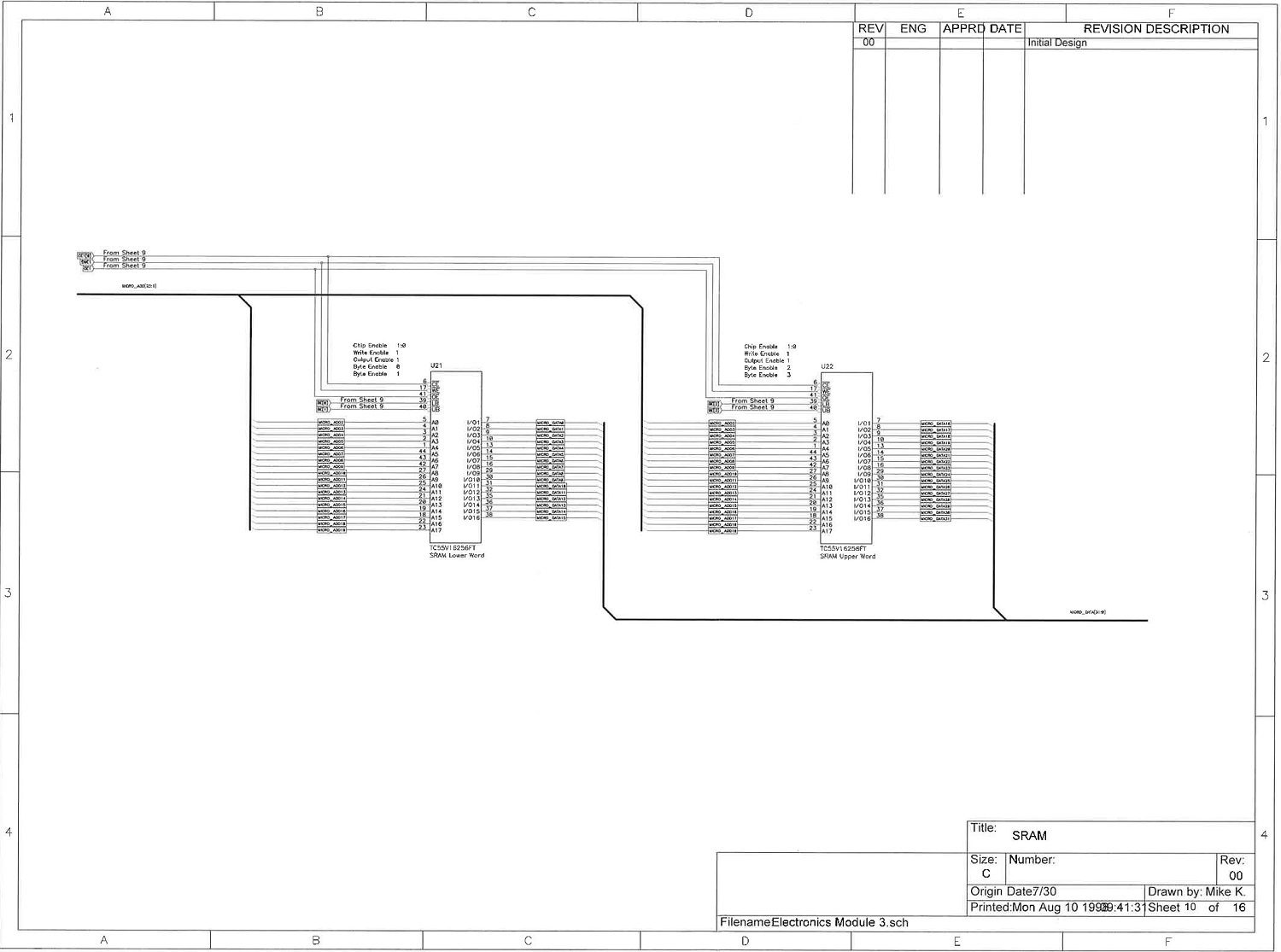

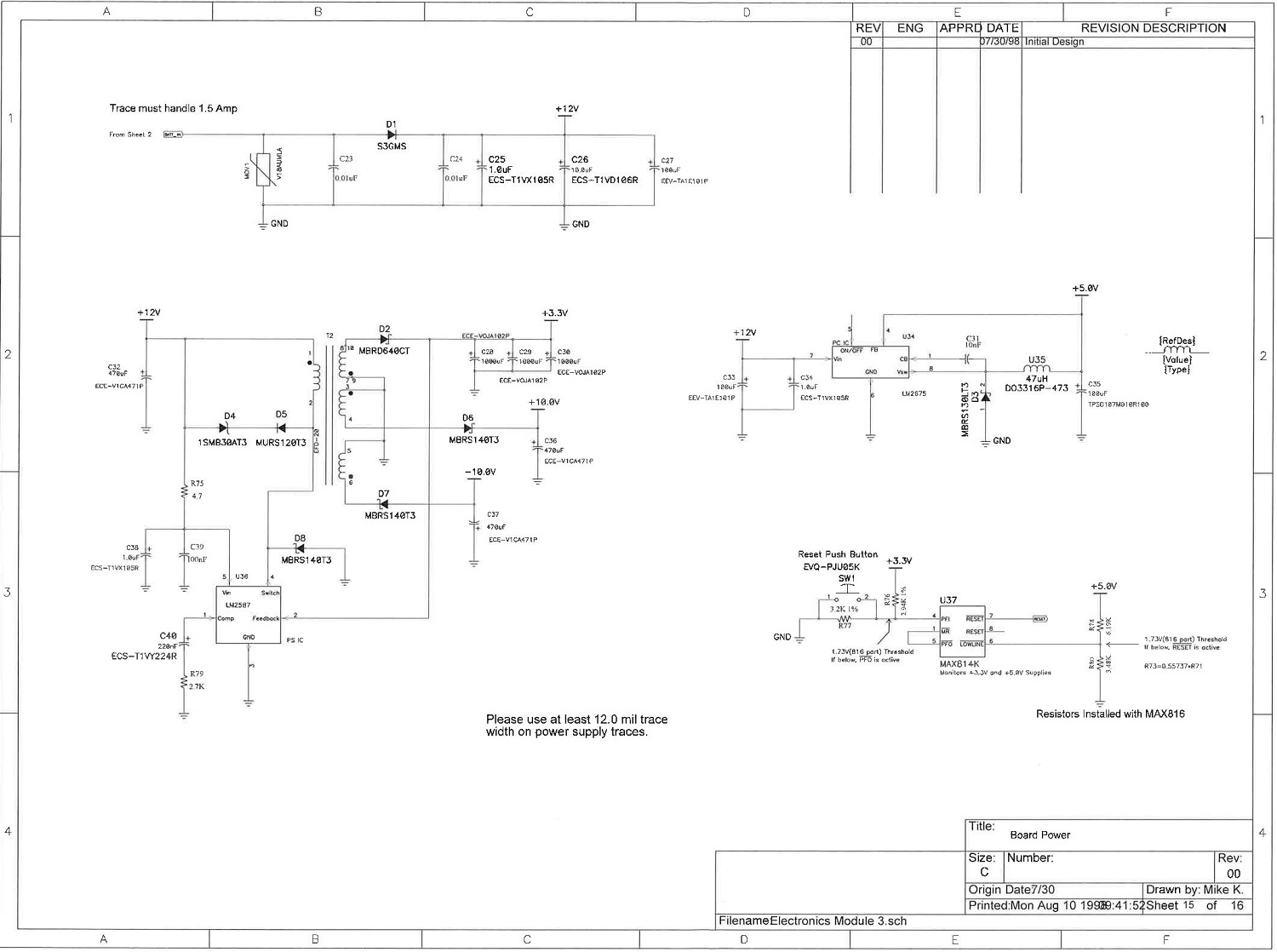

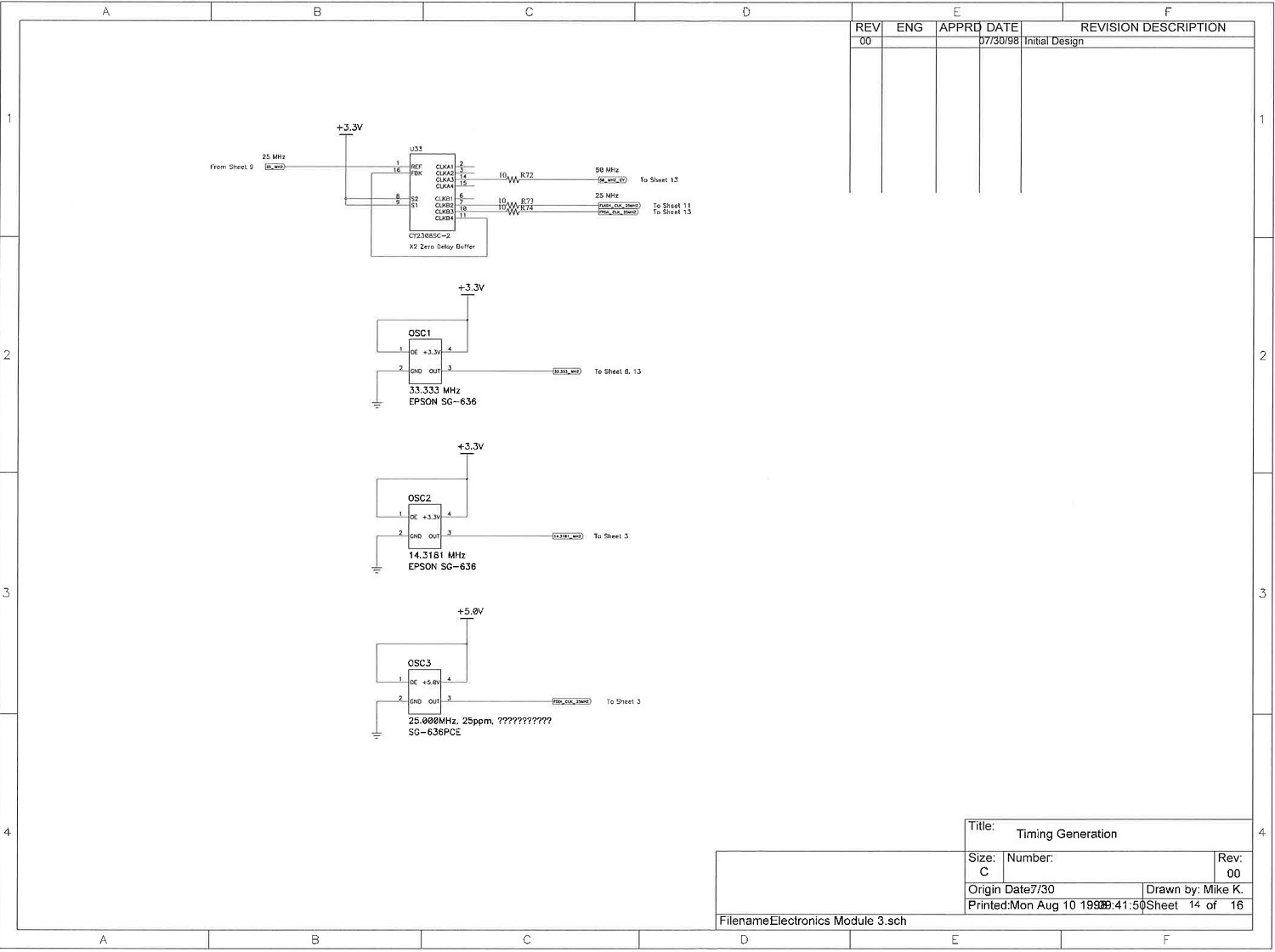

This design uses a 600 pin FPGA to process input from a video camera and display it in the dashboard of an automobile in order to replace the rear view mirrors. This is an old project to prove concept. The FPGA was to be replaced with an Application Specific Integrated Circuit. The design was given to me, and my job was to find compatible components, capture the schematic, create footprints for the components, and provide initial placement of components. An auto router was used to lay out the PCB to save time. I did, however, design the power supply for this project.
